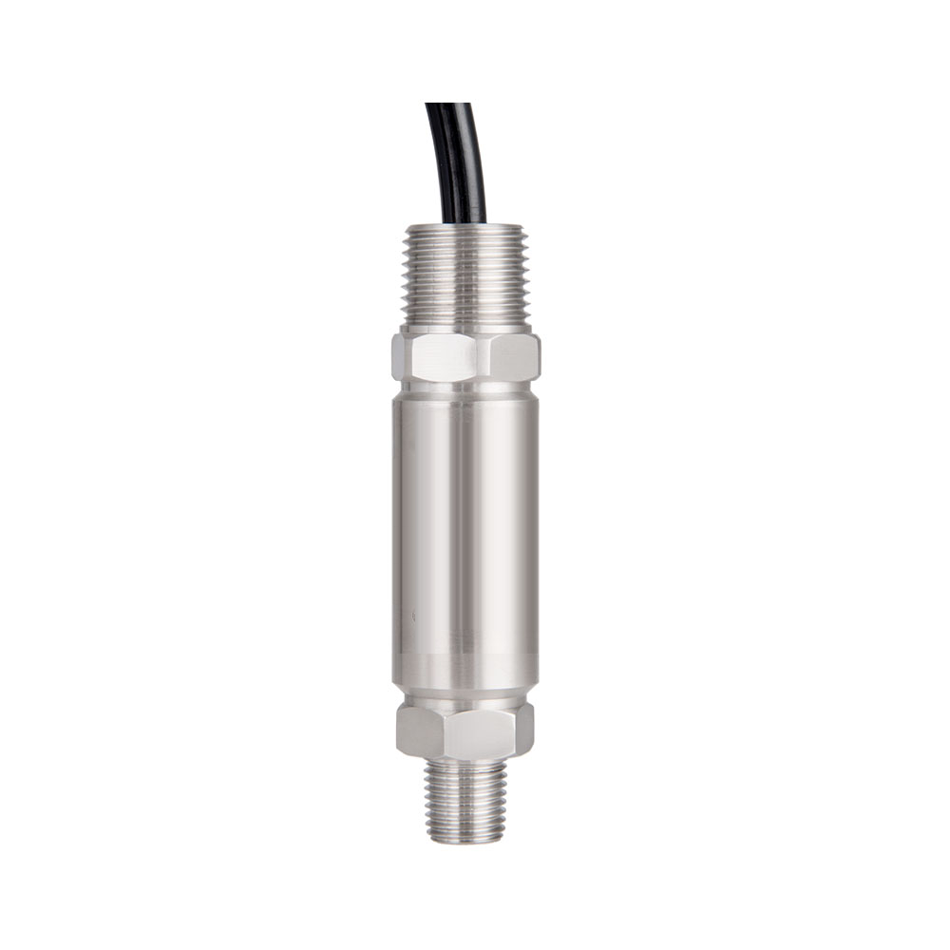

Explosion Proof Intrinsically Safe Truck Oil Pressure Sensor 4~20mA

Name: Explosion Proof Intrinsically Safe Truck Oil Pressure Sensor 420mA
Brand: Atech sensor
Price: 5 USD

Buy cheap Explosion Proof Intrinsically Safe Truck Oil Pressure Sensor 4~20mA product

Brand Name : Atech sensor

Model Number : PT207 pressure sensor

Certification : CE, RoHs ,FDA , ISO 9001,Atex

Place of Origin : China

MOQ : 1pc

Price : USD５５-８5 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15000 pcs per month

Delivery Time : 10 working days

Packaging Details : carton packing, water proof, shock resistance

pressure ranges : 0-0.1-400 bar

IP　 : IP　６８

output signal : i2c, 4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA

accuracy : 0.5%FS

lead time : 10 days

long term stability : <0.5%FS/year

supply voltage : 3.3v for I2c , 10~30V

compensated temperature range : -10~70°c

customized support : OEM , ODM

Overload : 200%F.S

Burst pressure : 600 bar

certificate : CE Rohs Atex

type : truck oil pressure sensor

Screw : 1/2NPT

Electronic connector : 1/2 NPT

Contact Now

Feature

● MEMS technology

● Imported silicon sensor chip employed

● Perfect long term stability

● CE certificate

● OEM service provided

● Sillicon sensor cell employed

Applications

● Industrial process control
● Energy and water treatment
● Liquid pressure system and switch
● Pipeline pressure testing

Explosion Proof Intrinsically Safe Truck Oil Pressure Sensor 4~20mA

Speifications

pressure medium	gas liquid compatible stainless steel
pressure ranges	0-250 bar
overload pressure	300%FS
output signal	4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA
accuracy	0.5%FS (standard) 0.25%FS 0.1%FS
load resistance	RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability	<0.5%FS/year
supply voltage	10~30V
compensated temperature range	-10~70°c
operating temperature range	-40~+120°c
storage temperature range	-40~+140°c
temperature coefficient of zero	0.03%FS/10°c
temperature coefficient of span	0.03%FS/10°c
insulation resistance	>100MΩ@ 50VDC
process connection	G1/4 or others
electrical connection	DIN 43650 or others
material of wetted part	1Cr18Ni9Ti
material of pressure membrane	316L
material of housing	1Cr18Ni9Ti
weight	180g

Why Choose Us?
a.Low cost compact type
b.Imported Germany technology Ceramic sensors, 8-10 years design
c.Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years
d.Linear Amplified Output
e.Ten million cycle life expectancy
f.Superior Long term Stability
g.Excellent Repeat ability/Hysteresis
h.EMI/RFI Rejection
i.Low power consumption


Explosion Proof Intrinsically Safe Truck Oil Pressure Sensor 4~20mA
