Atech Submersible Pressure Transducer PL304 Compensated Temp. Range 0~60°C

Atech sensor Co.,Ltd
Contact Now

Atech Submersible Pressure Transducer PL304 Compensated Temp. Range 0~60°C

Brand Name : Atech

Model Number : PL304

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pcs month

Delivery Time : 5-8 work days

Packaging Details : standard export packing ,carton packing, water proof, shock resistance or according to customer's requirements.

pressure medium : liquid compatible stainless steel

Pressure ranges : 0~0.5 m H2O...20 m H2O

overload pressure : 150%FS

 output signal : 4~20mA, 0.5 ~4.5V, 0~10V, RS485, Hart

accuracy : 0.5%FS (standard)

compensated temperature range : 0~60°c

 long term stability : 0.2%FS/year

Power supply : 24VDC ,12VDC ,5VDC

Contact Now

Submersible pressure transducer PL304 armoring level pressure sensor for gasoline



Feature

● Measuring range 0~0.5...20mH2O

● All metal armoring type

● Fully welded structure

● CE certificate

● Anti-corrosive ability

● Intrinsically sate ,explosion proof



Applications

● Gasoline level measurement

● Liquid measuring for petroleum ,metallurgy

● Gasoline Tank level monitoring

● Vehicle fuel



Description

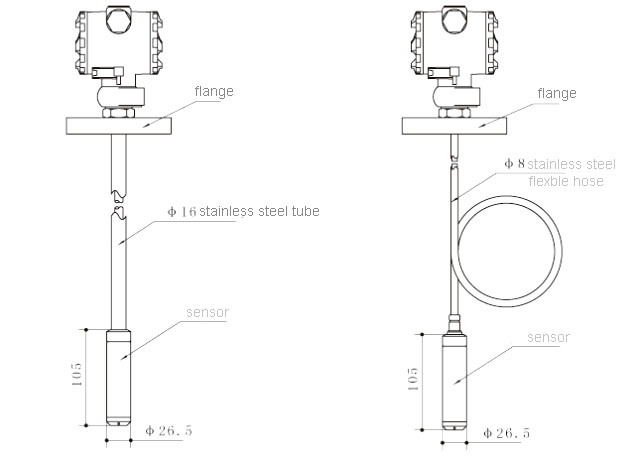

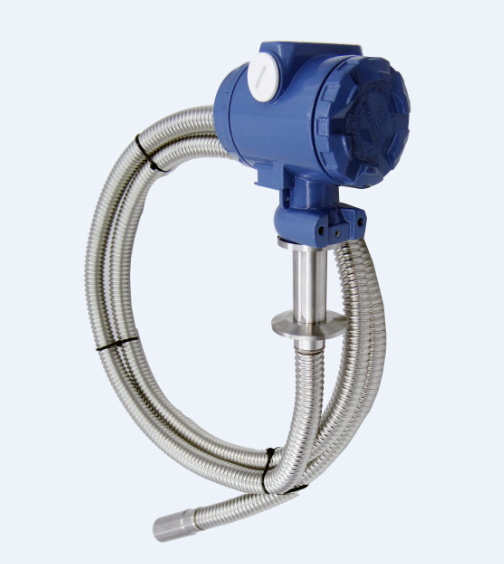

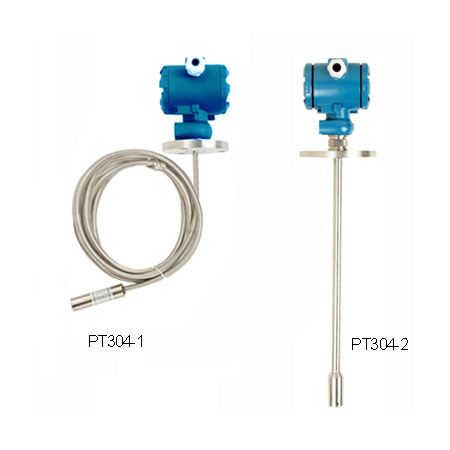

PT304E series level sensor is designed especially for gasoline and petroleum, for the molecule of the gasoline and petroleum is so small, they will sink into the PE or PUR cable, will damage the sensor. so we use the flexible 316SS tube protect the PUR cable. During the long time application testing , the sensor performs excellent . PL304E featured in accurate test and durable usage, and stable performance. It can not only be installed on various occasions requiring precise level measuring of gasoline, diesel, water and hydraulic oil, etc, but also be Application for measuring of various non-conductive liquids.

Sensor Part sealed in stainless steel house ,so it has strong anti-Jamming capability . Circuit Part sealed in Junction box which easy for adjustment



Speifications



pressure medium liquid compatible stainless steel
pressure ranges 0~0.5 m H2O...20 m H2O
overload pressure 150%FS
output signal 4~20mA, 0.4 ~4.5V, 0~10V, RS485, Hart
accuracy 0.5%FS (standard)
load resistance RL = (U-10)/0.02(Ω) (4~20mA current output), >20KΩ (voltage output)
long term stability 0.2%FS/year
supply voltage 24VDC ,12VDC ,5VDC
compensated temperature range 0~60°c
operating temperature range 0~+100°c
storage temperature range -40~+125°c
temperature coefficient of zero 1.5%FS (Max)
temperature coefficient of span 1.5%FS (Max)
insulation resistance 100MΩ@ 250VDC
Pressure connection screw thread, throw-in type
Protection grade IP68
material of wetted part and housing 1Cr18Ni9Ti
material of pressure membrane 316L
Response time 1ms
